Descrição

Especificaciones

<>

<>
• Marca msi

<>

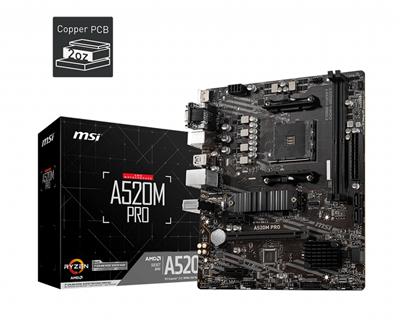

• Modelo A520M PRO (911-7D14-011)

<>

• Plataforma M-ATX (24.4 cm x 21 cm)

<>

• Chipset AMD&reg, A520 chipset

<>

• CPU
  <>
  <>
  • Soportado Admite AMD&reg, Ryzen &trade, 1st, 2nd y 3rd Gen Ryzen&trade, Desktop Processors and AMD Ryzen&trade, 4000 G-Series Desktop Processors

  <>

  <>

<>

• Memoria<>
  <>
  • 2 x DDR4 memory slots, hasta 64GB
    Soporta DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    Soporta DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE

  <>

  • 1DPC 1R max speed 4600 MHz

  <>

  • 1DPC 2R max speed 3866 MHz

  <>

  • Dual channel memory architecture

  <>

  • Soporta non-ECC UDIMM memory

  <>

  • Soporta ECC UDIMM memory (non-ECC mode)

  <>

  • Soporta un-buffered memory

  <>

  <>

<>

• Slots Expansi&oacute,n<>
  <>
  • 1 x PCIe x16 slot (PCI_E2)

  <>

  • 2 x PCIe 3.0 x1 slots

  <>

  <>

<>

• Gr&aacute,ficos<>
  <>
  • 1 x VGA

  <>

  • 1 x HDMI 2.1

  <>

  • 1 x DisplayPort

  <>

  <>

<>

• Puertos E/S, Conectores
  <>
  <>
  • Internos
    <>
    <>
    • 1 x 24-pin ATX main power

    <>

    • 1 x 8-pin ATX 12V power

    <>

    • 4 x SATA 6Gb/s

    <>

    • 1 x Serial port

    <>

    • 1 x M.2 slot (M-Key)

    <>

    • 1 x USB 3.2 Gen 1 5Gbps

    <>

    • 2 x USB 2.0

    <>

    • 1 x 4-pin CPU fan

    <>

    • 1 x 4-pin system fan

    <>

    • 1 x Front panel audio

    <>

    • 2 x System panel

    <>

    • 1 x Chassis Intrusion

    <>

    • 1 x 4-pin RGB LED

    <>

    • 1 x 3-pin RAINBOW LED

    <>

    • 1 x TPM module

    <>

    • 1 x Clear CMOS jumper

    <>

    <>

  <>

  • Externos
    <>
    <>
    • 1 x VGA

    <>

    • 1 x PS / 2 puerto combinado

    <>

    • 2 x USB 2.0

    <>

    • 1 x DisplayPort

    <>

    • 1 x LAN

    <>

    • 1 x HD Audio

    <>

    • 1 x HDMI

    <>

    • 4 x USB 3.2 Gen1

    <>

    <>

  <>

  <>

<>

• Otras Caracter&iacute,sticas
  <>
  <>
  • Almacenamiento
    <>
    <>
    • 4 x SATA 6Gb/s ports

    <>

    • 1 x M.2 slot (Key M)

    <>

    <>

  <>

  • RAID
    <>
    <>
    • Soporta RAID 0, RAID1 y RAID 10

    <>

    <>

  <>

  • USB
    <>
    <>
    • 2 x USB 3.2 Gen 1

    <>

    • 6 x USB 2.0

    <>

    • 4 x USB 3.2 Gen 1

    <>

    <>

  <>

  • Red
    <>
    <>
    • 1 x controlador Realtek&reg, 8111H Gigabit LAN

    <>

    <>

  <>

  • Audio
    <>
    <>
    • C&oacute,dec Realtek&reg, ALC892

    <>

    • Audio de alta definici&oacute,n de 7.1 canales

    <>

    <>

  <>

  • Montaje
    <>
    <>
    • 6 x agujeros de montaje

    <>

    <>

  <>

  <>

<>
